Littl' Juey Curved Shaft Head

Regular price $50.00 EX. SHIPPING
/
If you have a curved shaft petrol line trimmer or a top end mounted (motor at the top of the machine) electric line trimmer you need the Littl' Juey Curved Shaft Head. The Littl' Juey Curved Shaft Head easily fits onto your line trimmer to give you stress free and quick loading of nylon with no winding or jamming. Upgrade your line trimmer today with a Littl' Juey Curved Shaft Head. Littl' Juey Kicks Grass! Please note: If you are purchasing this head for a Stihl FS36 Line Trimmer please tick the box below.

DO YOU NEED ANY NYLON RELOADS?
Recommended Line:
Littl' Juey Combat 2.4 Reloads
Littl' Juey 2.4mm Reloads
Littl' Juey Combat 3.5 Reloads
Littl' Juey 3.2mm Reloads

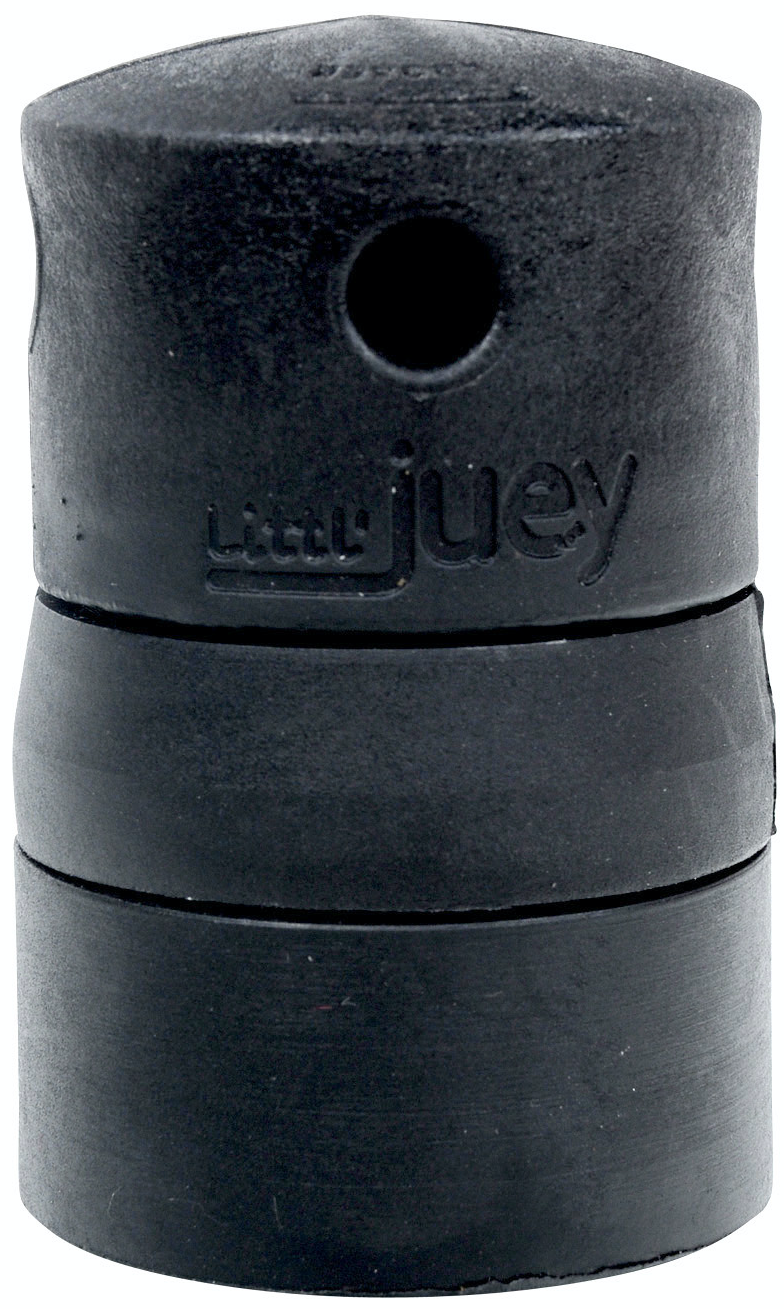

Code: LJBS Material: Heavy Duty Glass Reinforced Thermoplastic
Recommended Line: Littl' Juey Combat2.4 Reloads (Orange), Littl' Juey 2.4mm Reloads (Orange), Littl' Juey Combat3.5 Reloads (Black), Littl' Juey 3.2mm Reloads (Black)
Components: Curved shaft head, nut and bolts to suit most machines, and four Combat2.4 Reload strips
Application: Made to fit curved shaft line trimmers regardless of brand.

Curved Shaft Line Trimmer Head Assembly

For specific assembly information for fitting your Littl' Juey Curved Shaft Head to your Curved Shaft line trimmer please refer to the following fitment instructions.

Option A: Long

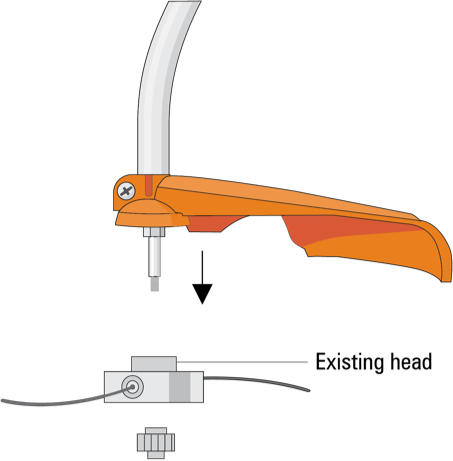

Step 1

1. Remove original head from weed cutter (consult your owners manual for details).

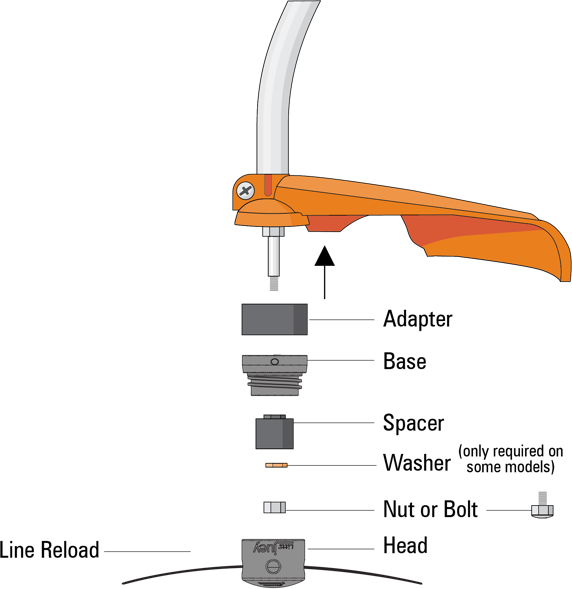

Step 2

2. Slide the Littl’ Juey adapter onto spindle.

3. Attach the Littl’ Juey base and spacer with the appropriate nut or bolt inside the base(add washer if necessary).

4. Tighten nut or bolt until secure.

5. Attach the littl’ Juey head with Littl’ Juey Line Reload in the holes provided and tighten.

Option B: Short

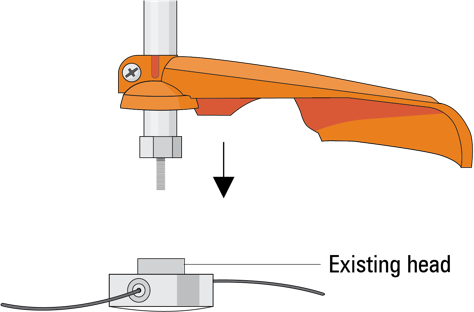

Step 1

1. Remove original head from weed cutter (consult your owners manual for details).

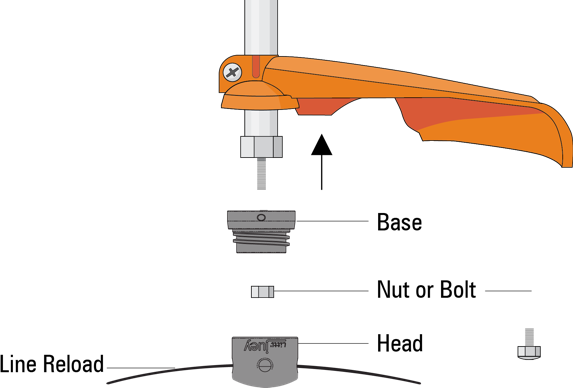

Step 2

2.  Attach the Littl’ Juey base onto spindle with appropriate nut or bolt inside base.

3. Attach the Littl’ Juey base and spacer with the appropriate nut or bolt inside the base(add washer if necessary).

4. Tighten nut or bolt until secure.

5. Attach the littl’ Juey head with Littl’ Juey Line Reload in the holes provided and tighten.

WORKS AS HARD AS YOU DO.

The Littl' Juey Curved Shaft Head is the ideal companion for every day line trimming around your property.
